Payments at the charging station, made simple

Pay with an ordinary payment card right at the charger, with no app and independent of the charging station.

Configure with a terminal Enquire about the terminal

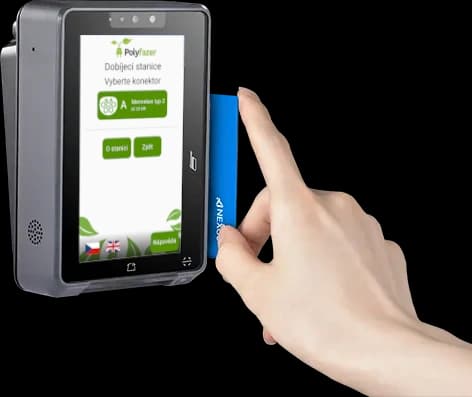

Nexgo UN20 payment terminal running the Polyfazer app, with a payment card

No app, independent of the station

A self-service payment solution for EV charging stations. The driver pays with an ordinary payment card right at the station - no app download, no registration. Fully integrated with the Polyfazer system.

No app
Contactless payment with a VISA or Mastercard card. No download, no registration.
Independent of the station
Works on its own, with no changes to the charger's software or hardware.
Built for the field
Rugged outdoor Nexgo UN20 terminal rated IP65 - runs outside in any weather.

Touchscreen: 5.0″ HD
Rugged rating: IP65, IK08
Operating temperature: −20 to 70 °C

From selection to charging in four steps

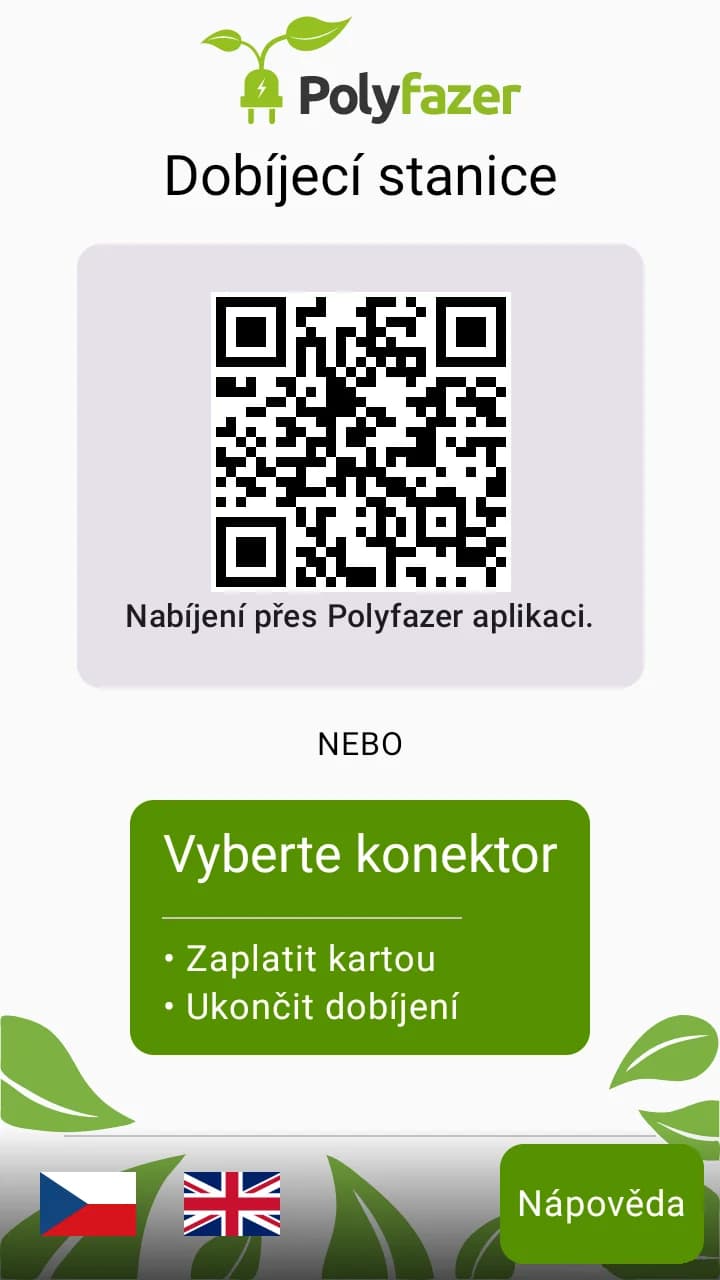

Choose at the station
Scan the QR code for the app, or pick a connector right on the terminal.

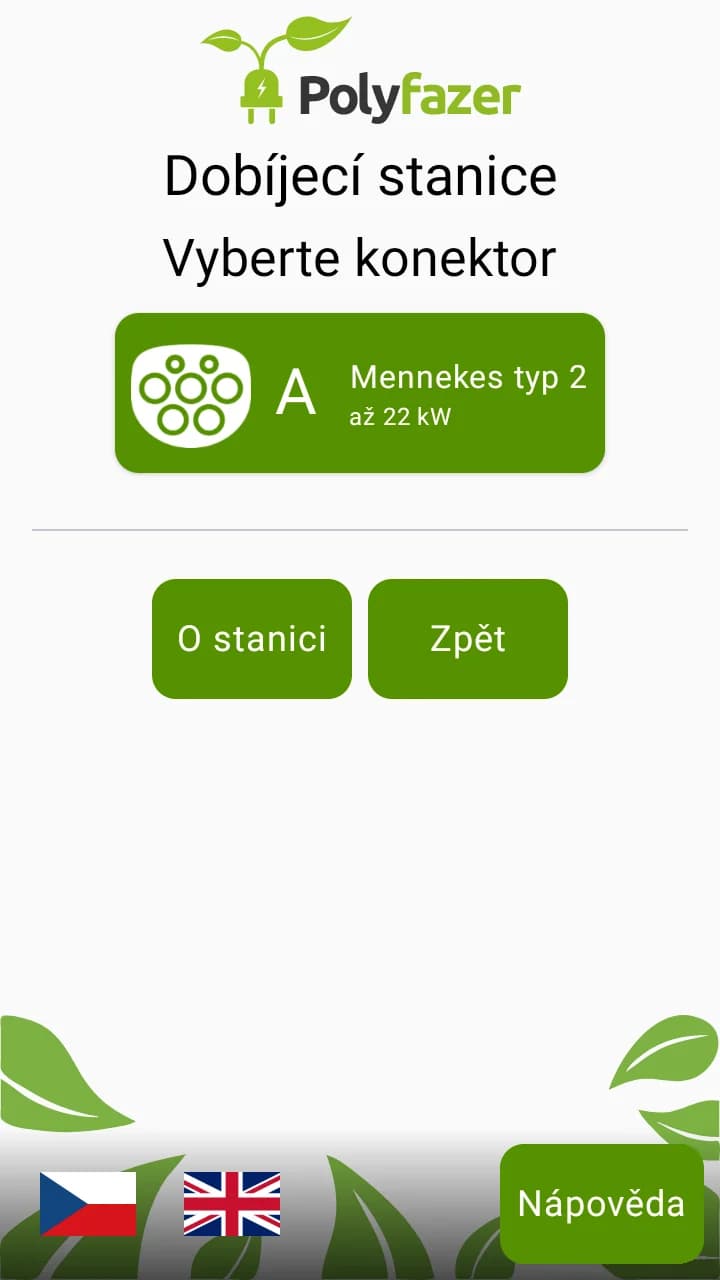

Pick a connector
Choose the connector and the charging type.

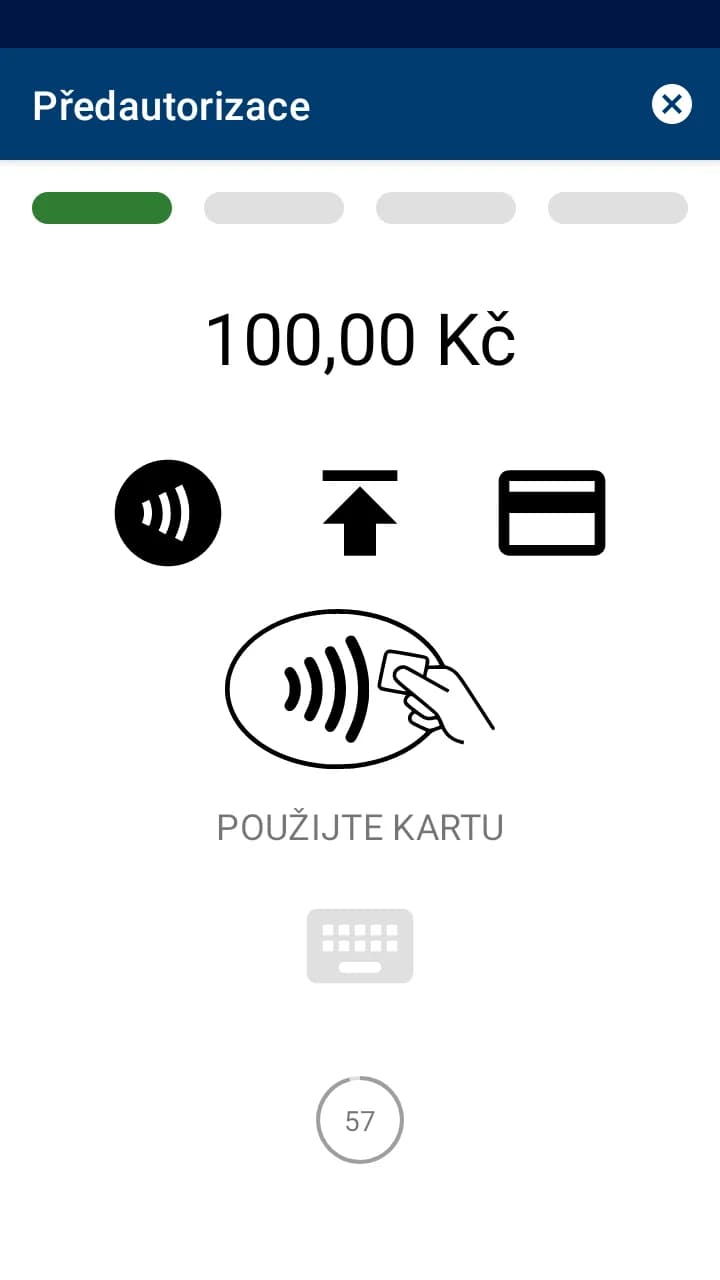

Pay by card
Pre-authorisation and a tap of the payment card.

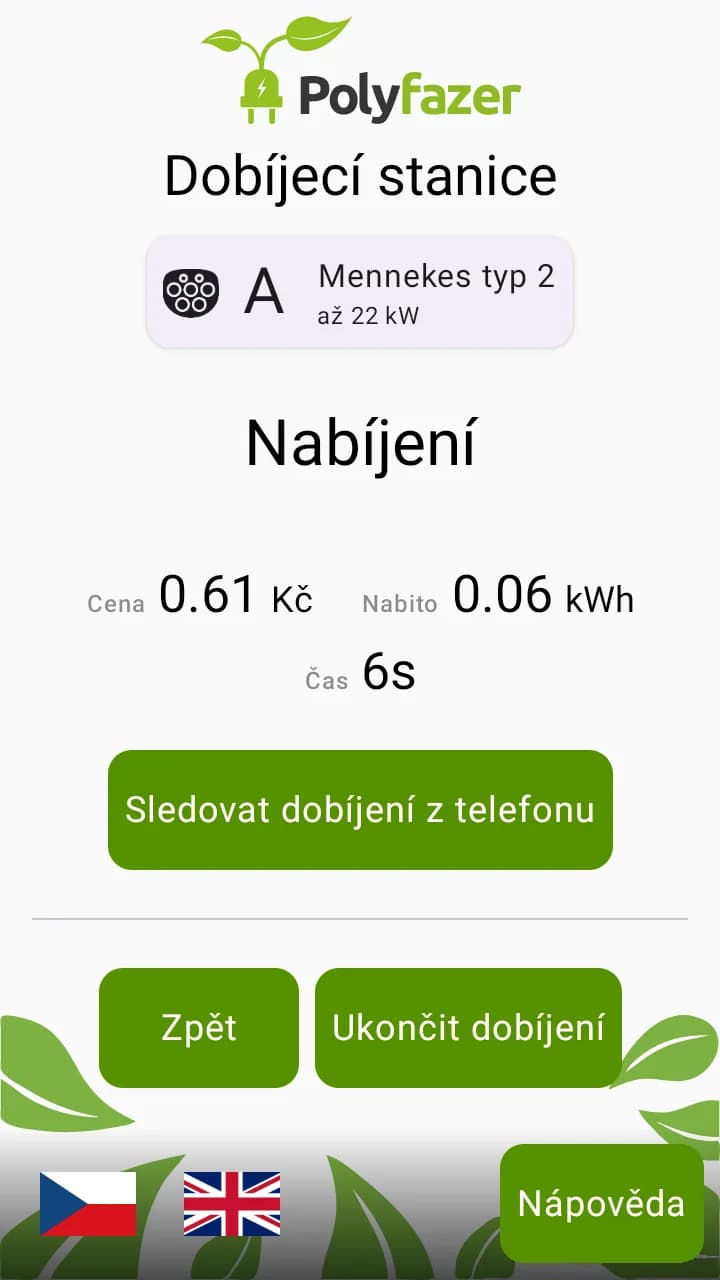

Charging in progress
Follow the price, energy delivered and time.

More with the Polyfazer app

Pair the session with the app to watch charging remotely, keep a charging history and navigate to stations with ease.

Everything self-service payment needs

Ordinary card payment

Contactless, chip or magnetic stripe. No app.

Independent of the station

No changes to the charger's software or hardware. Add the terminal to stations that are already installed.

Your own look

Logo and colours in your brand, connection to your own app.

No unpaid sessions

Pre-authorisation guarantees payment for the energy actually delivered.

Serves several stations

One terminal serves a whole set of charging stations.

Remote monitoring

Pair the session with the app to monitor charging remotely.

Polyfazer integration

Fully connected to the Polyfazer system - payments, sessions and invoicing in one place.

With a pedestal, or without

Kiosk on a pedestal

A stand-alone payment kiosk on its own pedestal. Stands next to the stations and serves the whole set of chargers on site.

Configure

Without a pedestal

Terminal mounted on the station or on a wall. The smallest footprint on site, the same function.

Configure

Nexgo UN20 terminal

A rugged self-service payment terminal. Android 11 and a quad-core processor for smooth self-service use, a dedicated camera for fast QR and barcode reading.

Processor: Quad-core Cortex A53, 2.0 GHz
Memory: 2 GB RAM + 8 GB ROM
Operating system: Android 11
Display: 5.0″ 1280×720 HD, capacitive touch (multi-touch)
Camera: Front 2 Mpx · bottom 2 Mpx
Audio: Built-in speaker
Connectivity: 4G · Wi-Fi · LAN · Bluetooth
Positioning: GPS · BeiDou or GLONASS
Dimensions: 146 × 101 × 57 mm; cut-out 108.7 × 86.4 mm
Card support: Contactless ISO 14443 A/B/C, chip ISO 7816, magnetic (track 1/2/3)
Slots: 2× SIM · 1× SD · 4× SAM
Interfaces: USB-A, USB-C, LAN, 2× RS232, MDB Master/Executive + Slave, Digital I/O, SMA
Power supply: DC 12–48 V · AC 19–30 V (MDB)
Durability: IP65 · IK08 · ATEX
Operating temperature: −20 °C to 70 °C (storage −30 to 80 °C)
Humidity: 10–95 % (non-condensing)
Payment certification *: PCI 6.x, EMV L1&L2 / CL1, QPBOC, Quickpass, Paypass, Paywave, JCB, Discover, Amex
Standards: CE · RoHS · IP65 · IK08

* Certifications planned. Source: manufacturer Nexgo (XGD), UN20 datasheet.

Simple payments. Happy drivers.

Self-service payments at your charging stations - ready to deploy and integrated with the Polyfazer system. We will walk you through the solution in detail and prepare a deployment to fit.
